NU228-E-M1A-C3-FAG Cylindrical Roller Bearing

NU228-E-XL-M1A-C3

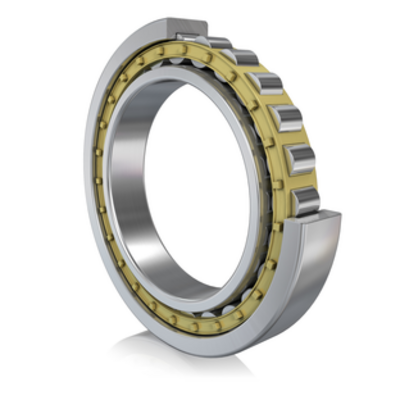

Cylindrical roller bearing NU..-E-XL-M1A, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU, Running accuracy in P5

Main Dimensions & Performance Data
d : 140 mm Bore diameter
D : 250 mm Outside diameter
B : 42 mm Width
Cr : 460,000 N Basic dynamic load rating, radial
C0r : 510,000 N Basic static load rating, radial
Cur : 62,000 N Fatigue load limit, radial
nG : 4,900 1/min Limiting speed
nϑr : 2,600 1/min Reference speed
≈m : 9.5 kg Weight
