RMEY75-INA Bearing Unit
INA

RMEY75-INA Bearing Unit

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£212.74 €246.40 $285.16 ex VAT

Descrizione

RMEY75-XL

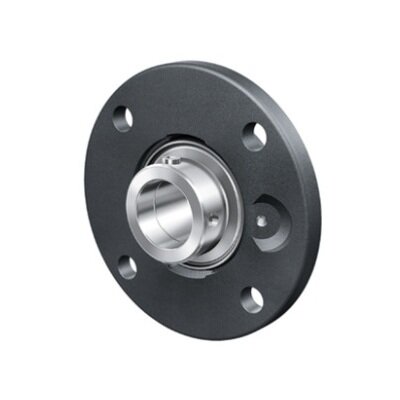

Flanged housing unit
Housing units RMEY, four-bolt flanged housing units, cast iron, centring spigot, grub screws in inner ring, R seals

Main Dimensions & Performance Data
d : 75 mm Bore diameter
H : 220 mm Height flange
U :  44.5 mm Total height unit
Cr : 62,000 N Basic dynamic load rating, radial
C0r :  44,500 N Basic static load rating, radial
Cur : 1,880 N Fatigue load limit, radial
≈m :  5.26 kg Weight
Mounting dimensions
J : 184 mm Pitch circle diameter (holes)
N : 18 mm Fixing bore
Z : 160 mm Diameter spigot
h8 : Diameter spigot clearance
n : 4 Number of screwing holes

Dimensioni

Foro di dimensione: 75

Dimensione OD: 0

Larghezza dimensione: 0

Weight: 5260g
