6220-C3-FAG Ball Bearing 100x180x34

6220-C3-FAG Ball Bearing

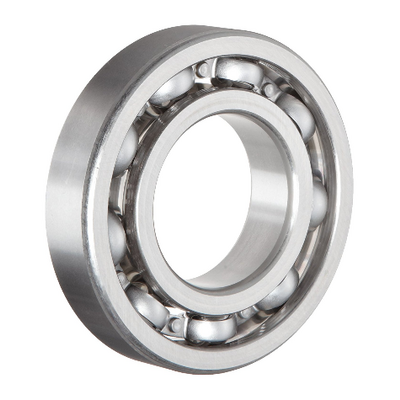

Deep groove ball bearings are one of the most common style of ball bearings which support axial forces in both directions as well as radial forces. The bearing has a single row of balls retained in a cage. This style of bearing you are viewing is what we call open style (no seals or shields), allowing the lubricant to flow around the bearing freely. Open bearings tend to be used in applications like gearboxes.


Main Dimensions & Performance Data
d : 100 mm Bore diameter
D : 180 mm Outside diameter
B : 34 mm Width
Cr : 130,000 N Basic dynamic load rating, radial
C0r : 93,000 N Basic static load rating, radial
Cur : 5,500 N Fatigue load limit, radial
nG : 5,000 1/min Limiting speed
nϑr : 4,800 1/min Reference speed
≈m : 3.12 kg Weight
