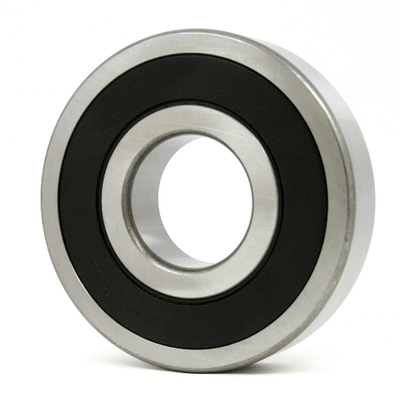

6314-2RSR-C3-FAG Ball Bearing 70x150x35

6314-2RSR-C3
Deep groove ball bearing 63..-2RSR, single row, seals, steel sheet metal cage

Your current product variant
Sealing 2RSR Contact seal on both sides
Cage JN Steel sheet metal
Tolerance class PN Normal (PN)
Dimensional / heat stabilization S0 Rings dimensional stabilized up to 150°
Lubricant GA13 Ball bearing and insert bearing grease
Radial internal clearance C3 (Group 3) Internal clearance larger than CN

Main Dimensions & Performance Data
d : 70 mm Bore diameter
D : 150 mm Outside diameter
B : 35 mm Width
Cr : 115,000 N Basic dynamic load rating, radial
C0r : 69,000 N Basic static load rating, radial
Cur : 4,600 N Fatigue load limit, radial
nG : 2,800 1/min Limiting speed
