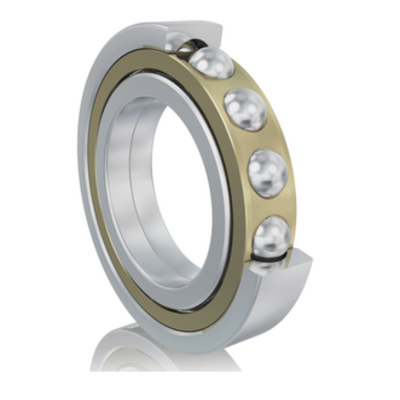

QJ230-N2-MPA-C3-FAG Four Point Contact Bearing

QJ 230 N2-MPA-C3
Four-point contact ball bearing with locating slots
Four-point contact ball bearings with locating slots can accommodate high axial loads in both directions and small radial loads. They can operate at very high speeds and are more suitable than deep groove ball bearings for supporting large axial forces. The outer ring, with ball and cage assembly, can be mounted separately from the two inner ring halves. The locating slots can be used to prevent the outer ring from rotating.
High-speed capability
Accommodate high axial loads in both directions and small radial loads
Require considerably less axial space than double row angular contact ball bearings
The locating slots can be used to prevent the outer ring from rotating

Main Dimensions & Performance Data
d : 150 mm Bore diameter
D : 270 mm Outside diameter
B : 45 mm Width
Cr : 350,000 N Basic dynamic load rating, radial
C0r : 485,000 N Basic static load rating, radial
Cur : 18,900 N Fatigue load limit, radial
nG : 4,350 1/min Limiting speed
nϑr : 2,360 1/min Reference speed
