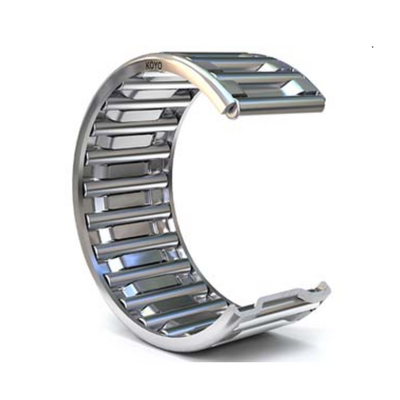

K90-98-27-INA Caged Needle Roller Bearing
INA

K90-98-27-INA Caged Needle Roller Bearing

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£77.35 €89.59 $103.37 ex VAT

Description

K90X98X27-A/0-7
Needle roller cage assembly K, single row

Main Dimensions & Performance Data
Fw : 90 mm Inner diameter of needle roller complement
Ew : 98 mm Outside diameter of needle roller complement
Bc : 27 mm Width
Cr : 61,000 N Basic dynamic load rating, radial
C0r : 150,000 N Basic static load rating, radial
Cur : 20,600 N Fatigue load limit, radial
nG : 5,200 1/min Limiting speed
nϑr : 3,300 1/min Reference speed
≈m : 175 g Weight

Dimensions

Dimension Bore: 90

Dimension OD: 98

Dimension Width: 27

Weight: 175g
