GRAE55-XL-NPP-B-INA Bearing Insert
INA

GRAE55-XL-NPP-B-INA Bearing Insert

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£41.45 €48.01 $55.39 ex VAT

Description

GRAE55-XL-NPP-B

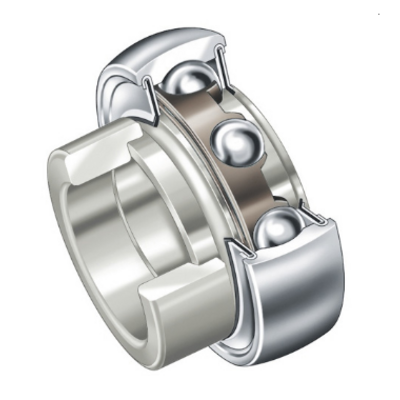

Radial insert ball bearing

Main Dimensions & Performance Data
d : 55 mm Bore diameter
DSP : 100 mm Outside diameter
B : 32.5 mm Width
B1 : 48.4 mm Locking collar total width
Cr : 43,500 N Basic dynamic load rating, radial
C0r : 29,000 N Basic static load rating, radial
Cur : 1,340 N Fatigue load limit, radial
≈m : 1.06 kg Weight

Dimensions

Dimension Bore: 55

Dimension OD: 100

Dimension Width: 48.4

Weight: 1060g
