PSFT20-INA Take Up Bearing Unit
INA

PSFT20-INA Take Up Bearing Unit

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£29.48 €34.19 $39.45 ex VAT

Description

PSFT20-XL

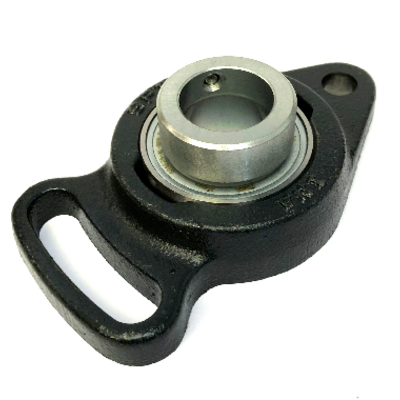

Take-up housing units PSFT, cast iron housing, radial insert ball bearing with eccentric locking collar, P seals

Main Dimensions & Performance Data
d : 20 mm Bore diameter
L : 112 mm Length total
U : 34 mm Total height unit
≈m : 0.39 kg Weight
Mounting dimensions
N : 11.5 mm Fixing bore
N1 : 30 mm Length (slot)
N2 : 11.5 mm Width (slot)
J : 90 mm Distance fixing bore

Dimensions

Dimension Bore: 20

Dimension OD: 0

Dimension Width: 0

Weight: 390g
