RAE20-NPP-FA106-INA Ball Bearing Insert
NSK

RAE20-NPP-FA106-INA Ball Bearing Insert

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£18.56 €21.50 $24.88 ex VAT

Description

RAE20-XL-NPP-FA106

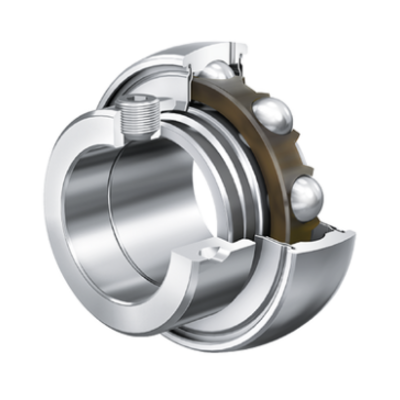

Radial insert ball bearing with locking collar

Main Dimensions & Performance Data
d = 20 mm Bore diameter
D = 47 mm Outside diameter
B = 21.4 mm Width
B1 = 31 mm Locking collar total width
Cr = 12,800 N Basic dynamic load rating, radial
C0r = 6,600 N Basic static load rating, radial
Cur = 315 N Fatigue load limit, radial

Sealing NPP Lip seals on both sides
Manufacturing instruction FA106 Bearing subjected to special noise testing

Dimensions

Dimension Bore: 20

Dimension OD: 47

Dimension Width: 31

Weight: 190g
