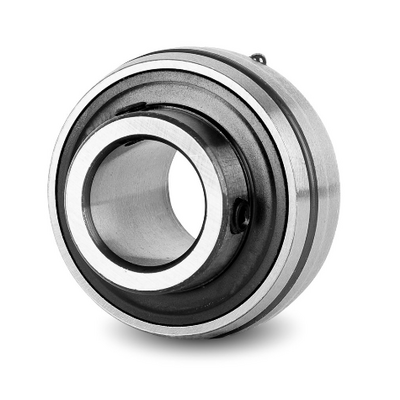

SUC204-SNR Stainless Steel Bearing Insert
SNR

SUC204-SNR Stainless Steel Bearing Insert

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£43.72 €51.76 $58.60 ex VAT

Description

SUC204
SNR Brand
Stainless Steel Bearing Insert

PRODUCT DEFINITION
B - Width of Inner Ring 31 mm
C - Width of Outer Ring 17 mm
C1 - Distance center of OR to center of lubrication zone 3,7 mm
d - Shaft diameter 20 mm
D - Outer diameter of OR 47 mm
G - Set screw size M6x1
m - Distance to set screw 5 mm
r - Radius Inner Ring 0.5
S - Distance front side/bearing centre 12,7 mm
f0 - Factor 13.2
SW - Wrench size 3 mm

Dimensions

Dimension Bore: 20

Dimension OD: 47

Dimension Width: 31

Weight: 152g
