TASE75-INA Plummer Block Unit
INA

TASE75-INA Plummer Block Unit

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£252.87 €292.79 $337.91 ex VAT

Description

TASE75-XL

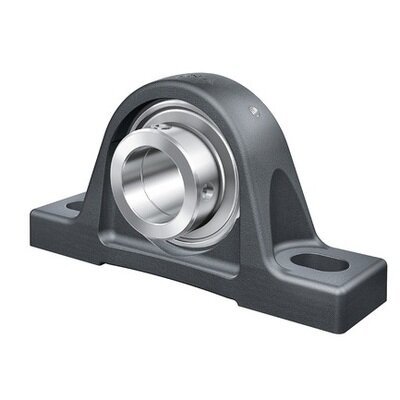

Plummer block housing units TASE, cast iron housing, radial insert ball bearing with eccentric locking collar, T seals

Main Dimensions & Performance Data
d : 75 mm Bore diameter
L : 265 mm Length total
H2 : 164 mm Height
≈m : 6.646 kg Weight
Mounting dimensions
J : 210 mm Distance fixing bore
N : 22 mm Width (slot)
N1 : 30 mm Length (slot)

Additional information
ASE15 : Housing
GE75-XL-KTT-B : Bearing designation

Dimensions

Dimension Bore: 75

Dimension OD: 0

Dimension Width: 0

Weight: 6600g
