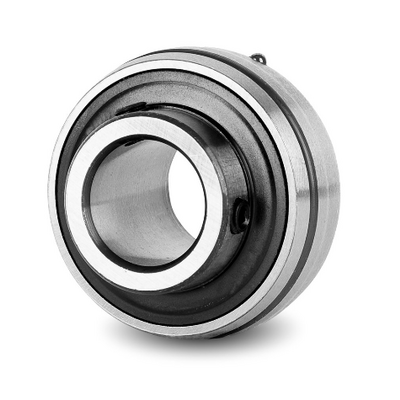

UC204G2-SNR Bearing Insert
SNR

UC204G2-SNR Bearing Insert

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£10.82 €12.52 $14.58 ex VAT

Description

UC204G2
SNR Brand
Bearing Insert

PRODUCT DEFINITION
B - Width of Inner Ring 31 mm
C - Width of Outer Ring 16 mm
C1 - Distance center of OR to center of lubrication zone 4,4 mm
d - Shaft diameter 20 mm
D - Outer diameter of OR 47 mm
G - Set screw size M6x1
m - Distance to set screw 4,7 mm
r - Radius Inner Ring 0.6
S - Distance front side/bearing centre 12,7 mm
f0 - Factor 13.2
SW - Wrench size 3 mm

Dimensions

Dimension Bore: 20

Dimension OD: 47

Dimension Width: 31

Weight: 165g
