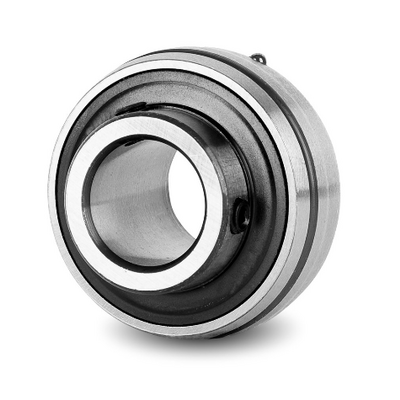

UC207G2-SNR Bearing Insert 35mm

UC207G2 - SNR
Spherical outer diameter, fixing by socket set screw, seal with slinger
Bearing inserts for bearing units, are proposed with different locking devices for easy assembly.

PRODUCT DEFINITION
Brand SNR
B - Width of Inner Ring 42,9 mm
C - Width of Outer Ring 20 mm
C1 - Distance center of OR to center of lubrication zone 5,8 mm
d - Shaft diameter 35 mm
D - Outer diameter of OR 72 mm
G - Set screw size M8x1
m - Distance to set screw 6,5 mm
r - Radius Inner Ring 1.1
S - Distance front side/bearing centre 17,5 mm
f0 - Factor 14
SW - Wrench size 4 mm

PRODUCT PERFORMANCE
C - Dynamic load rating 25,7 kN
C0 - Static load rating 15,2 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C
