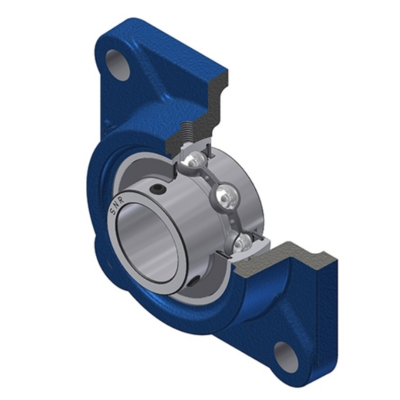

UCFS308-SNR Bearing Unit

UCFS308 - SNR
Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger
Self aligning bearing units with different fixing options and housings made of cast, stainless steel or plastic.

This kit contains the following reference(s)
UC308G2

PRODUCT DEFINITION
Brand SNR
A - Housing height 40 mm
A1 - Housing foot height / flange height 17 mm
A2 - Total height from mounting surface 46 mm
A4 - Housing height from mounting surface 30 mm
B - Width of Inner Ring 52 mm
d - Shaft diameter 40 mm
e - Distance mounting surface to bearing center 13 mm
G - Grease fitting M6x1
H3 - Centering dia 115 mm
J - Mounting holes distance 112 mm
L - Housing width / diameter 150 mm
N - Mounting hole dimension 19 mm
S - Distance front side/bearing centre 19 mm
