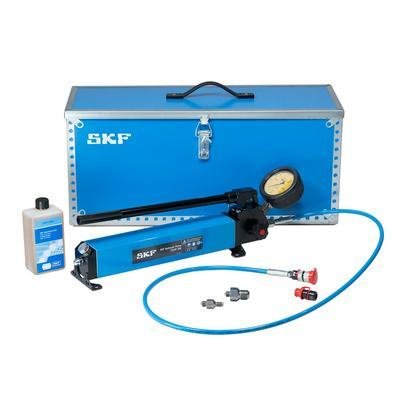

THHP 300 SKF Hydraulic Pump Tool Kit

Hydraulic pump 300 MPa
300 MPa - (43 500 psi)
Easy-to-connect manual hydraulic pump develops oil pressures up to 300 MPa (43 500 psi)

The THHP 300 is a high pressure, hand-operated hydraulic pump that is suitable for many applications using the SKF Oil Injection Method, for oil pressures up to 300 MPa (43 500 psi). It can be used straight from the case: mount the appropriate THPN nipple on the application and then screw on the quick connection nipple. Connecting the hose to the nipple on the application enables a supply of high pressure oil. The two stage pump includes a 0-300 MPa (0-43 500 psi) pressure gauge, high pressure hose and quick connection coupling. Connection nipples enable both G1/4 and G3/4 connections.
Two stage pump design to quickly reach high pressures up to 300 MPa (43 500 psi)
Large, mounted gauge shows pressures over the full pressure range
Glycerine filled pressure gauge dampens shocks and pressure peaks, giving longer service life and is easier to read
Easy to use – it comes with a high-pressure hose, a quick connection coupling is included and various nipples to connect to the most common applications
Applicable in wide range of industries including rail and marine
Design minimises the risk of oil leaking into the environment
Packed in a sturdy protective case

TECHNICAL DATA
Designation THHP 300
Description Hand operated high pressure pump, 300 MPa (43 500 psi), complete in case
Maximum pressure 300 MPa (43 500 psi)
Volume per stroke 1st Stage 40 cm3 (2.43 in.3) – below 1.6 MPa (232 psi)
Volume per stroke 2nd Stage 0.5 cm3 (0.03 in.3) – above 1.6 MPa (232 psi)
Oil reservoir capacity 1.8 litres (110 in.3) / 1.6 litres (97.6 in.3 ) usable
Pressure gauge 0-300 MPa (0-43 500 psi)
Diameter 100 mm (4 in.)
Accuracy 1% of full scale
Hose length 2 m (78 in.)
Hose connection threads: G1/4 female to pump
M16 male thread with special sealing design to attach to the quick connection coupling.
Maximum torque for M16 thread 40-50 Nm / (29.5-36.9 ft-lb)
Main dimensions of the pump (without hose and gauge) 574 x 130 x 200 mm ( 22.6 x 5.1 x 7.9 in.)
Dimensions of the carrying case 920 x 318 x 380 mm (36.2 x 12.5 x 15.0 in.)
Weight of the pump 7.5 kg (16.5 lb)
Weight of the full carrying case 20.4 kg (50 lb) ​​​​​​​​​​​​​​

Technical Data Sheet : https://www.bearings-online.co.uk/uploads/tinymce/THHP300 DATA SHEET.pdf

Dimensions

Weight: 20400g
