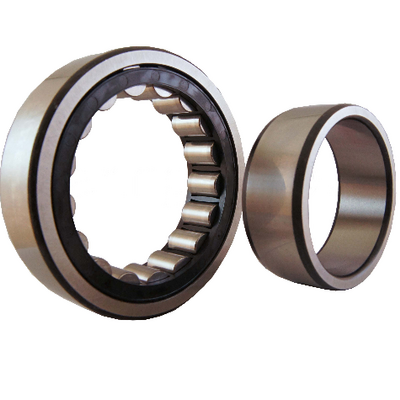

NU209ECJ-SKF Cylindrical Roller Bearing 45x85x19

NU 209 ECJ (Steel Cage)
Single row cylindrical roller bearing, NU design
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design

Basic dynamic load rating : 69.5 kN
Basic static load rating : 64 kN
Reference speed : 9 000 r/min
Limiting speed : 9 500 r/min
