6000LLUC3/5K-NTN Ball Bearing 10x26x8
NTN

6000LLUC3/5K-NTN Ball Bearing 10x26x8

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£2.69 €3.11 $3.62 ex VAT

Beschreibung

6000LLUC3/5K
NTN Brand

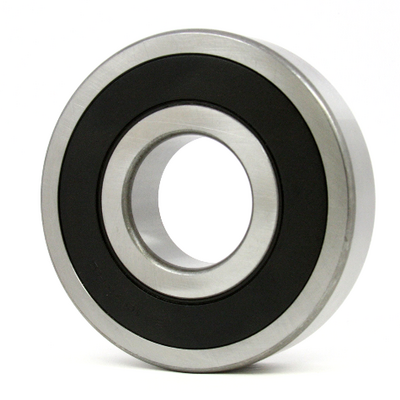

Ball Bearing with rubber seals both sides

Brand NTN
d - Internal diameter 10 mm
D - External diameter 26 mm
B - Bearing/Inner ring width 8 mm
rs - Min fillet radius 0,3 mm
Radial clearance class C3
C - Dynamic load 5,05 kN
C0 - Static load 1,96 kN
Cu - Fatigue limit load 0,138 kN
f0 - Coefficient 12.4
Nlim - Grease lubrication limit speed 21000 tr/min
Tmin - Min operating temperature -25 °C
Tmax - Max operating temperature 110 °C

Dimensions

Dimension Bore: 10

Dimension OD: 26

Dimension Width: 8

Weight: 19g
