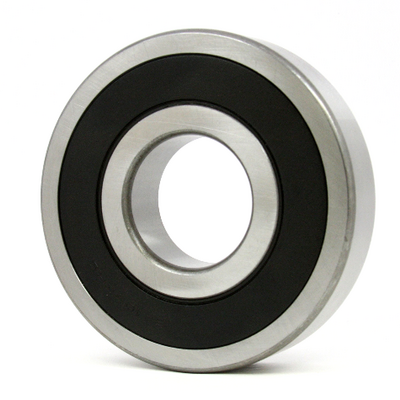

6003LLB/5K-NTN Ball Bearing 17x35x10

6003LLBCM/5K - NTN
Deep groove ball bearing, radial contact, pressed steel cage, non-contact seals on both sides

The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.

PRODUCT DEFINITION
d - Internal diameter 17 mm
D - External diameter 35 mm
B - Bearing/Inner ring width 10 mm
rs - Min fillet radius 0,3 mm
Radial clearance class CM
Mass 0,039 kg
C - Dynamic load 7,55 kN
C0 - Static load 3,35 kN
Cu - Fatigue limit load 0,243 kN
f0 - Coefficient 13.6
N lim - Grease lubrication limit speed 20000 tr/min
Tmin - Min operating temperature -25 °C
Tmax - Max operating temperature 110 °C
