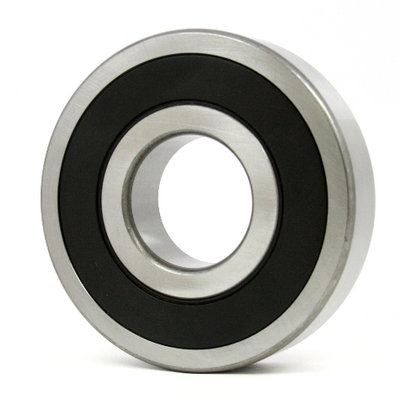

6305LLB/5K-NTN Ball Bearing 25x62x17

6305LLBCM/5K - NTN

Deep groove ball bearing, radial contact, pressed steel cage, non-contact seals on both sides

The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.

PRODUCT DEFINITION
Brand NTN
d - Internal diameter 25 mm
D - External diameter 62 mm
B - Bearing/Inner ring width 17 mm
rs - Min fillet radius 1,1 mm
Radial clearance class CM
Mass 0,232 kg

PRODUCT PERFORMANCE
C - Dynamic load 23,5 kN
C0 - Static load 10,9 kN
Cu - Fatigue limit load 0,855 kN
f0 - Coefficient 12.6
Nlim - Grease lubrication limit speed 12000 tr/min
Tmin - Min operating temperature -25 °C
Tmax - Max operating temperature 110 °C
