6900-NTN Ball Bearing 10x22x6

6900 - NTN

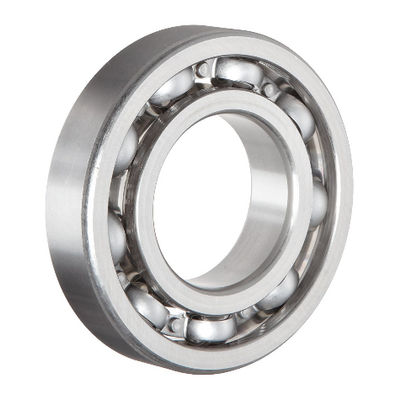

Deep groove ball bearing, radial contact, pressed steel cage, open

The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.

PRODUCT DEFINITION
d - Internal diameter 10 mm
D - External diameter 22 mm
B - Bearing/Inner ring width 6 mm
rs - Min fillet radius 0,3 mm
Radial clearance class CN

PRODUCT PERFORMANCE
C - Dynamic load 2,99 kN
C0 - Static load 1,27 kN
Cu - Fatigue limit load 0,099 kN
f0 - Coefficient 14
Nlim - Oil lubrication limit speed 36000 tr/min
Nlim - Grease lubrication limit speed 30000 tr/min
Tmin - Min operating temperature -40 °C
Tmax - Max operating temperature 120 °C
