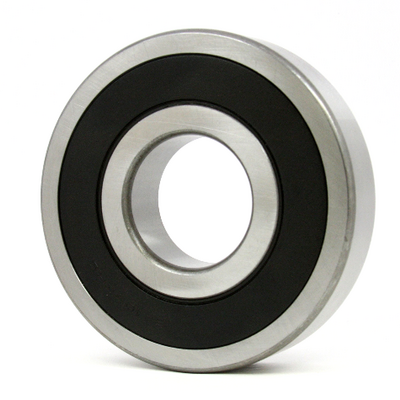

6901LLU/5K-NTN Ball Bearing 12x24x6

6901LLU/5K - NTN
The single row deep-groove ball bearing is the most popular bearing. It is available in a wide range of sizes with several possible options: sealing with shields or seals, presence of a retaining ring, varied clearances, several cage types, etc.

PRODUCT DEFINITION
Brand NTN
d - Internal diameter 12 mm
D - External diameter 24 mm
B - Bearing/Inner ring width 6 mm
rs - Min fillet radius 0,3 mm
Radial clearance class CN

PRODUCT PERFORMANCE
C - Dynamic load 3,2 kN
C0 - Static load 1,46 kN
Cu - Fatigue limit load 0,115 kN
f0 - Coefficient 14.5
N lim - Grease lubrication limit speed 19000 tr/min
Tmin - Min operating temperature -25 °C
Tmax - Max operating temperature 110 °C
