6920-NTN Ball Bearing 100x140x20
NTN

6920-NTN Ball Bearing 100x140x20

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£78.71 €91.16 $105.50 ex VAT

Beschreibung

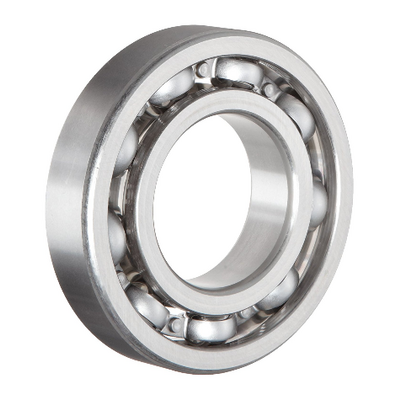

6920-NTN Ball Bearing (Open)

Brand NTN
d - Internal diameter 100 mm
D - External diameter 140 mm
B - Bearing/Inner ring width 20 mm
rs - Min fillet radius 1,1 mm
Radial clearance class CN
C - Dynamic load 45,5 kN
C0 - Static load 39,5 kN
Cu - Fatigue limit load 2,44 kN
f0 - Coefficient 16.4
Nlim - Oil lubrication limit speed 5300 tr/min
Nlim - Grease lubrication limit speed 4500 tr/min
Tmin - Min operating temperature -40 °C
Tmax - Max operating temperature 120 °C

Dimensions

Dimension Bore: 100

Dimension OD: 140

Dimension Width: 20

Weight: 799g
