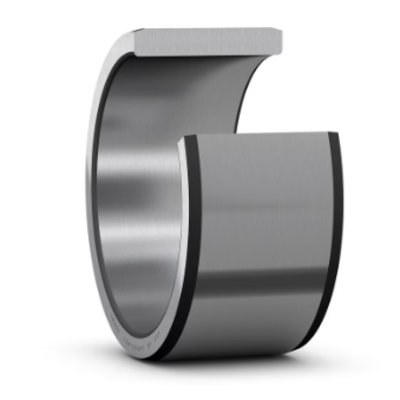

1R10X14X20-NTN Inner Ring
NTN

1R10X14X20-NTN Inner Ring

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£3.98 €4.61 $5.34 ex VAT

Beschreibung

Inner Ring

PRODUCT DEFINITION
Brand NTN
d - Internal diameter 10 mm
B - Bearing/Inner ring width 20 mm
F - Under roller diameter 14 mm
rs - Min fillet radius 0,3 mm
Lubrication hole on inner ring No
t - IR chamfer length 1 mm
Precision class P0
Mass 0,012 kg
ABUTMENT
da min - Min shoulder diameter IR 12 mm
ras max - Max shaft & housing fillet radius 0,3 mm

Dimensions

Dimension Bore: 10

Dimension OD: 14

Dimension Width: 20

Weight: 12g
