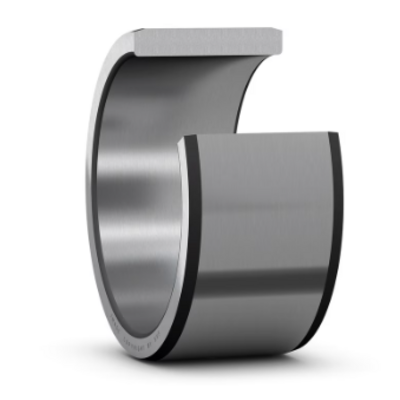

1R110X125X40-NTN Inner Ring
NTN

1R110X125X40-NTN Inner Ring

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£53.24 €61.57 $71.38 ex VAT

Beschreibung

Inner Ring

PRODUCT DEFINITION
Brand NTN
d - Internal diameter 110 mm
B - Bearing/Inner ring width 40 mm
F - Under roller diameter 125 mm
rs - Min fillet radius 1,1 mm
Lubrication hole on inner ring No
t - IR chamfer length 2,5 mm
Precision class P0
Mass 0,84 kg
ABUTMENT
da min - Min shoulder diameter IR 116,5 mm
ras max - Max shaft & housing fillet radius 1 mm



Dimensions

Dimension Bore: 110

Dimension OD: 125

Dimension Width: 40

Weight: 904g
