1R150X165X40-NTN Inner Ring
NTN

1R150X165X40-NTN Inner Ring

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£68.85 €79.47 $91.09 ex VAT

Beschreibung

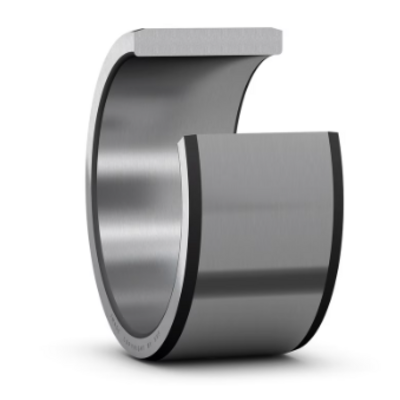

Inner Ring

PRODUCT DEFINITION
Brand NTN
d - Internal diameter 150 mm
B - Bearing/Inner ring width 40 mm
F - Under roller diameter 165 mm
rs - Min fillet radius 1,1 mm
Lubrication hole on inner ring No
t - IR chamfer length 3 mm
Precision class P0
Mass 1,12 kg
ABUTMENT
da min - Min shoulder diameter IR 156,5 mm
ras max - Max shaft & housing fillet radius 1 mm

Dimensions

Dimension Bore: 150

Dimension OD: 165

Dimension Width: 40

Weight: 1222g
