K14X18X13-INA Caged Needle Roller Bearing

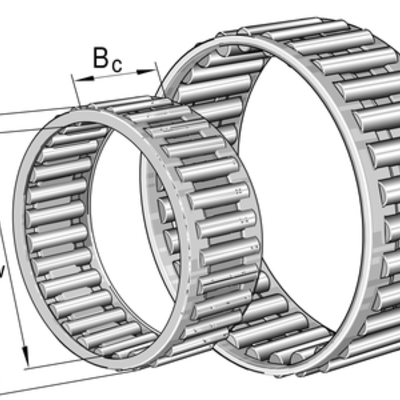

Main Dimensions & Performance Data
Fw 14 mm Inner diameter of needle roller complement
Ew 18 mm Outside diameter of needle roller complement
Bc  13 mm Width
Cr 8,200 N Basic dynamic load rating, radial
C0r 10,100 N Basic static load rating, radial
Cur 1,340 N Fatigue load limit, radial
nG 25,000 1/min Limiting speed
nϑr 17,700 1/min Reference speed
≈m 6.8 g Weight

Dimensions

Dimension Bore: 14

Dimension OD: 18

Dimension Width: 13

Weight: 7g
