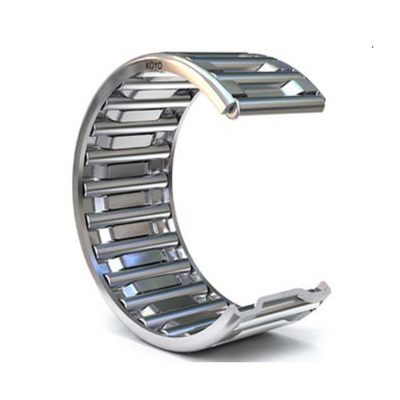

K15-18-17-TV-INA Needle Roller Bearing
INA

K15-18-17-TV-INA Needle Roller Bearing

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£5.12 €5.93 $6.86 ex VAT

Beschreibung

K15X18X17-TV/0-7
Needle roller cage assembly K..-TV, single row

Main Dimensions & Performance Data
Fw : 15 mm Inner diameter of needle roller complement
Ew : 18 mm Outside diameter of needle roller complement
Bc : 17 mm Width
Cr : 8,000 N Basic dynamic load rating, radial
C0r : 12,100 N Basic static load rating, radial
Cur : 1,760 N Fatigue load limit, radial
nG : 24,600 1/min Limiting speed
nϑr : 17,700 1/min Reference speed

Dimensions

Dimension Bore: 15

Dimension OD: 18

Dimension Width: 17

Weight: 4g
