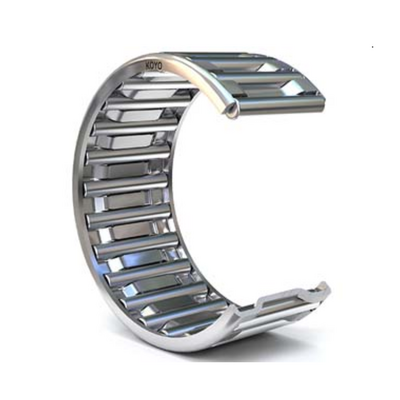

K28X34X17-NTN Caged Needle Bearing
NTN

K28X34X17-NTN Caged Needle Bearing

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£5.58 €6.46 $7.47 ex VAT

Beschreibung

K28X34X17-NTN Caged Needle Bearing

PRODUCT DEFINITION
Brand NTN
Fw - Under rollers diameter 28 mm
Ew - Upper rollers diameter 34 mm
Bc - Cage Width 17 mm

PRODUCT PERFORMANCE
Cr - Dynamic load rating 18,1 kN
C0r - Static load rating 25,8 kN
Nlim - Grease lubrication limit speed 9500 tr/min
Nlim - Oil lubrication limit speed 14000 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 120 °C

Dimensions

Dimension Bore: 28

Dimension OD: 34

Dimension Width: 17

Weight: 31g
