NATR35LL/3AS-NTN

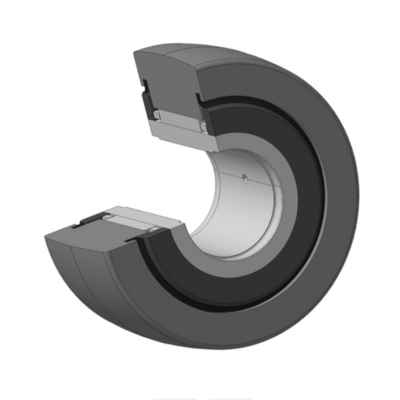

Yoke Type Track Roller Bearing

PRODUCT DEFINITION
d - Internal diameter 35 mm
D - External diameter 72 mm
C - Width of bearing, drawn cup or outer ring 28 mm
F - Under roller diameter 44,5 mm
B - Bearing/Inner ring width 29 mm
e - Inlet diameter of roller or washer 58 mm
R - Track roller radius 500 mm
Bearing with/without cage With
Radial clearance class CN
Precision class P0
Mass 0,635 kg

PRODUCT PERFORMANCE
Cr - Dynamic load rating 39 kN
C0r - Static load rating 77 kN
Track load capacity spherical outer ring 8,05 kN
Nlim - Grease lubrication limit speed 3300 tr/min
Tmin - Min operating temperature -20 °C
Tmax - Max operating temperature 100 °C
