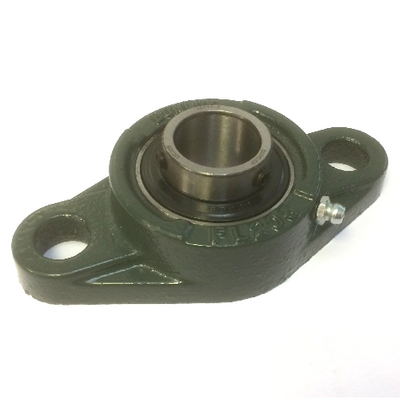

M-UCFL204D1-NTN Flanged housing units 20mm
NTN

M-UCFL204D1-NTN Flanged housing units 20mm

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£19.25 €22.30 $25.73 ex VAT

Beschreibung

M-UCFL204D1-NTN Flanged housing units 20mm

INNER DIAMETER 20 mm
WIDTH 31 mm
FIXATION CENTRE-TO-CENTRE DISTANCE 90 mm
MATERIAL Cast Steel
HEIGHT 33.3 mm
LENGTH 113 mm
SERIES UCFL200
TOTAL BEARING WIDTH 31 mm
DIAMETER OF FIXATION HOLES 12 mm
NUMBER OF HOLES 2
OUTER DIAMETER 47 mm

Dimensions

Dimension Bore: 20

Dimension OD: 0

Dimension Width: 0

Weight: 440g
