1R15X20X12-NTN Inner Ring
NTN

1R15X20X12-NTN Inner Ring

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£4.36 €5.03 $5.76 ex VAT

Description

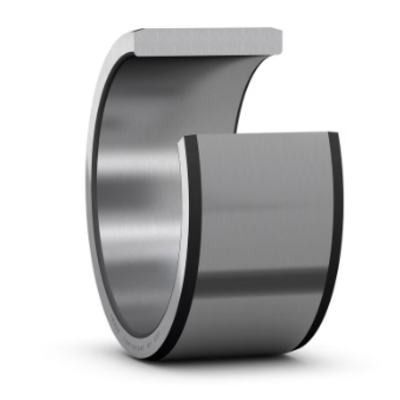

Inner Ring

PRODUCT DEFINITION
Brand NTN
d - Internal diameter 15 mm
B - Bearing/Inner ring width 12 mm
F - Under roller diameter 20 mm
rs - Min fillet radius 0,3 mm
Lubrication hole on inner ring No
t - IR chamfer length 1,5 mm
Precision class P0
Mass 0,012 kg
ABUTMENT
da min - Min shoulder diameter IR 17 mm
ras max - Max shaft & housing fillet radius 0,3 mm

Dimensions

Dimension Bore: 15

Dimension OD: 20

Dimension Width: 12

Weight: 18g
