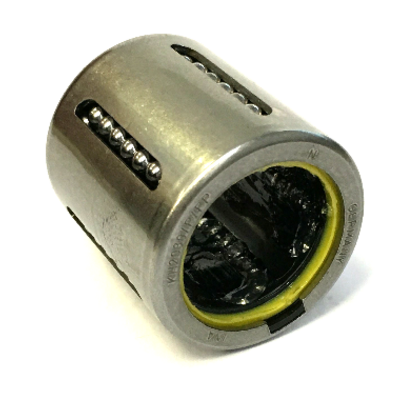

KH20-INA Linear Bearing
INA

KH20-INA Linear Bearing

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£10.32 €11.93 $13.90 ex VAT

Description

KH20-B
Linear ball bearings with preservative, not sealed, with relubrication facility

Main Dimensions & Performance Data
Fw : 20 mm Diameter shaft
D :  28 mm Outer diameter
L : 30 mm Length
Cmin : 1,110 N load capacity dyn. 1
C0 min : 790 N load capacity stat. 1
Cmax : 1,170 N load capacity dyn. 1
C0 max : 1,010 N load capacity stat. 1
≈m : 31.75 g Weight

Dimensions

Dimension Bore: 20

Dimension OD: 28

Dimension Width: 30

Weight: 34g
