GRAE30-XL-NPP-B-INA Bearing Insert
INA

GRAE30-XL-NPP-B-INA Bearing Insert

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£19.64 €22.73 $26.40 ex VAT

Description

GRAE30-XL-NPP-B

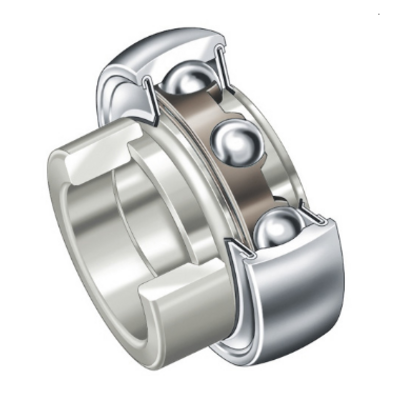

Radial insert ball bearing

Main Dimensions & Performance Data
d : 30 mm Bore diameter
DSP : 62 mm Outside diameter
B : 23.8 mm Width
B1 : 35.8 mm Locking collar total width
Cr : 19,500 N Basic dynamic load rating, radial
C0r : 11,300 N Basic static load rating, radial
Cur : 480 N Fatigue load limit, radial
≈m : 0.32 kg Weight

Dimensions

Dimension Bore: 30

Dimension OD: 62

Dimension Width: 35.8

Weight: 320g
