GE45-SX-INA Spherical Plain Bearing
INA

GE45-SX-INA Spherical Plain Bearing

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£232.63 €269.34 $312.82 ex VAT

Description

GE45-SX
INA Brand

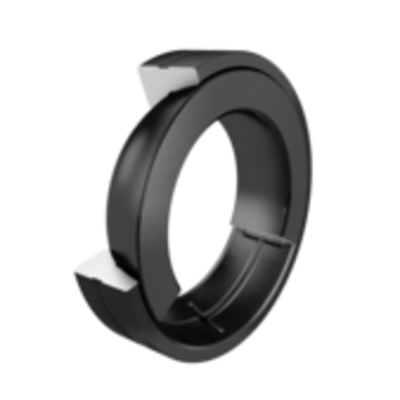

Spherical Plain Bearing
Angular contact spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-2, open design

Main Dimensions & Performance Data
d : 45 mm Inner diameter bearing
D : 75 mm Outside diameter bearing
T : 20 mm Height
Cr : 106,000 N Basic dynamic load rating, radial
C0r : 532,000 N Basic static load rating, radial

Dimensions

Dimension Bore: 45

Dimension OD: 75

Dimension Width: 20

Weight: 414g
