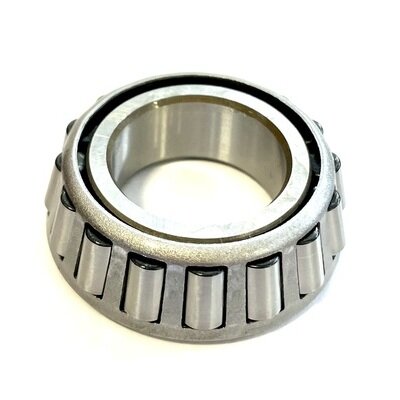

4T-18690-NTN Cone Only

4T-18690 - NTN
Mounted cone, pressed steel cage
The single row tapered roller bearing is available in metric dimensions (ISO 355 and JIS B 1512 standards) and in inches (ABMA standard, metric series including J). The single row in tapered roller bearing range, is the most widely used and is generally mounted in opposition.

PRODUCT DEFINITION
d - Internal diameter 46,038 mm
B - Bearing/Inner ring width 17,462 mm
d1 - External diameter inner ring 61 mm
PRODUCT PERFORMANCE
C - Dynamic load 50,5 kN
C0 - Static load 56 kN
A2 - Rating life coefficient 1
e - Coefficient 0.37
Y0 - Static axial load coefficient 0.88
Y2 - Upper axial load coefficient 1.6
