4T-H414249-NTN Cone Only

4T-H414249 Cone Only

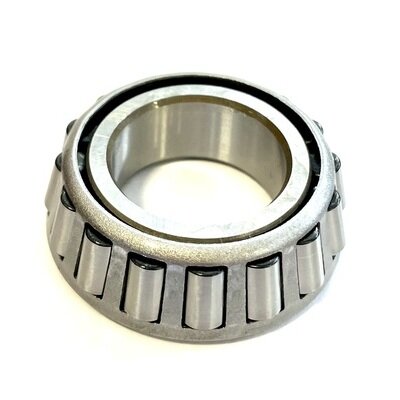

Mounted cone, pressed steel cage
The single row tapered roller bearing is available in metric dimensions (ISO 355 and JIS B 1512 standards) and in inches (ABMA standard, metric series including J). The single row in tapered roller bearing range, is the most widely used and is generally mounted in opposition.

PRODUCT DEFINITION
Brand NTN
d - Internal diameter 71,438 mm
B - Bearing/Inner ring width 41,275 mm
d1 - External diameter inner ring 101,5 mm
PRODUCT PERFORMANCE
C - Dynamic load 251 kN
C0 - Static load 293 kN
A2 - Rating life coefficient 1
e - Coefficient 0.36
Y0 - Static axial load coefficient 0.92
Y2 - Upper axial load coefficient 1.67
