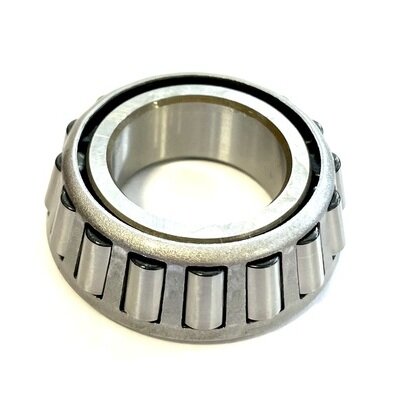

4T-JL69349PK-NTN Cone Only

4T-JL69349PK - NTN
The single row tapered roller bearing is available in metric dimensions (ISO 355 and JIS B 1512 standards) and in inches (ABMA standard, metric series including J). The single row in tapered roller bearing range, is the most widely used and is generally mounted in opposition.

PRODUCT DEFINITION
d - Internal diameter 38 mm
B - Bearing/Inner ring width 17 mm
Mass 0,065 kg
C - Dynamic load 43 kN
C0 - Static load 52,5 kN
A2 - Rating life coefficient 0
e - Coefficient 0.42
Y0 - Static axial load coefficient 0.79
Y2 - Upper axial load coefficient 1.44
