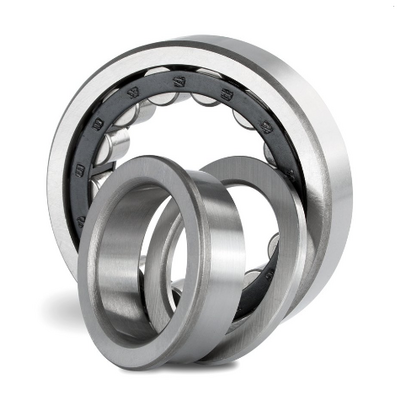

NUP308-E-XL-TVP2-FAG Cylindrical Roller Bearing

NUP308-E-XL-TVP2-FAG Cylindrical Roller Bearing

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£49.64 €57.48 $66.76 ex VAT

Descrizione

NUP308-E-XL-TVP2
FAG
Cylindrical Roller Bearing

Cylindrical roller bearing NUP..-E-XL-TVP2, with cage, single row, locating bearing, 2 ribs on outer ring, 1 rib on inner ring, rib washer internal, type NUP

Main Dimensions & Performance Data
d : 40 mm Bore diameter
D : 90 mm Outside diameter
B : 23 mm Width
Cr : 96,000 N Basic dynamic load rating, radial
C0r : 79,000 N Basic static load rating, radial
Cur : 13,700 N Fatigue load limit, radial
nG : 10,900 1/min Limiting speed
nϑr : 7,100 1/min Reference speed
Cage TVP2 Solid Window Cage made from PA66

Dimensioni

Foro di dimensione: 40

Dimensione OD: 90

Larghezza dimensione: 23

Weight: 688g
