SL183016-A INA Cylindrical Roller Bearing
INA

SL183016-A INA Cylindrical Roller Bearing

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£196.05 €226.99 $263.63 ex VAT

Descrizione

SL183016-A

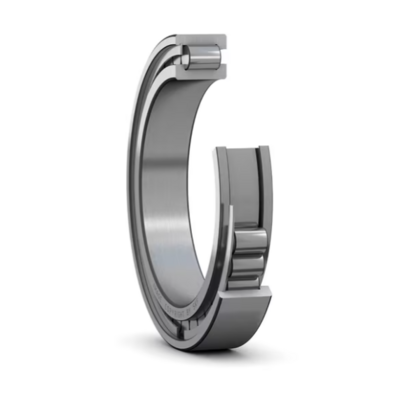

Cylindrical roller bearing SL18..-A, full complement roller set, single row, semi-locating bearing, 1 rib on outer ring, 2 ribs on inner ring, type SL18

Main Dimensions & Performance Data
d : 80 mm Bore diameter
D : 125 mm Outside diameter
B : 34 mm Width
Cr : 170,000 N Basic dynamic load rating, radial
C0r : 220,000 N Basic static load rating, radial
Cur : 33,000 N Fatigue load limit, radial
nG : 3,200 1/min Limiting speed
nϑr : 2,470 1/min Reference speed
≈m : 1.388 kg Weight

Dimensioni

Foro di dimensione: 80

Dimensione OD: 125

Larghezza dimensione: 34

Weight: 1388g
