SL185014-C3-INA Double Row Full Compliment Bearing
INA

SL185014-C3-INA Double Row Full Compliment Bearing

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£199.57 €231.06 $268.36 ex VAT

Descrizione

SL185014-C3
Cylindrical roller bearing SL1850..-A, full complement roller set, two-row, semi-locating bearing, 1 rib on outer ring, 3 ribs on inner ring, type SL18

Design A Internal Variant A
Radial internal clearance CN (Group N) Normal internal clearance
Tolerance class PN Normal (PN)
Number of rolling element rows 2 Double-row design

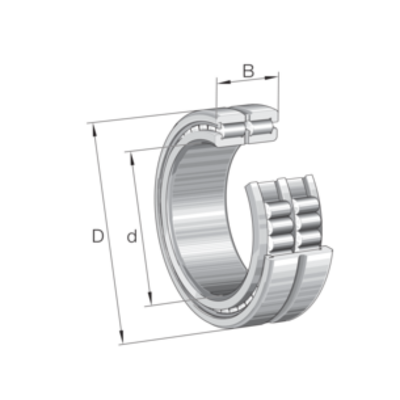

Main Dimensions & Performance Data
d : 70 mm Bore diameter
D : 110 mm Outside diameter
B : 54 mm Width
Cr : 233,000 N Basic dynamic load rating, radial
C0r : 350,000 N Basic static load rating, radial
Cur : 48,500 N Fatigue load limit, radial
nG : 3,750 1/min Limiting speed
nϑr : 2,650 1/min Reference speed
≈m : 1.78 kg Weight

Dimensioni

Foro di dimensione: 70

Dimensione OD: 110

Larghezza dimensione: 54

Weight: 1780g
