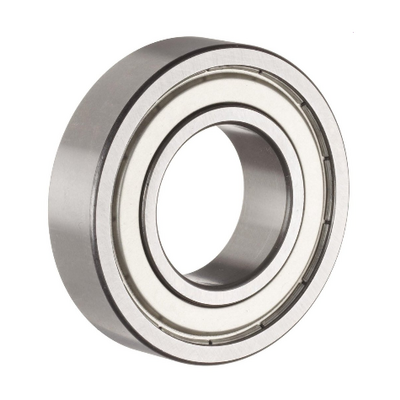

16006-2Z-FAG Ball Bearing 30x55x9

16006-A-2Z
Deep groove ball bearing 160..-A-2Z, single row, shields, steel sheet metal cage

Main Dimensions & Performance Data
d : 30 mm Bore diameter
D : 55 mm Outside diameter
B : 9 mm Width
Cr : 11,900 N Basic dynamic load rating, radial
C0r : 7,400 N Basic static load rating, radial
Cur : 470 N Fatigue load limit, radial
nG : 15,700 1/min Limiting speed
nϑr : 10,000 1/min Reference speed
≈m : 85 g Weight

Your current product variant
Changed internal design A Design variant A
Sealing 2Z Non-contact shield on both sides
Cage JN Steel sheet metal
Tolerance class PN Normal (PN)
Dimensional / heat stabilization SN Rings dimensional stabilized up to 120°
Lubricant Lubricating grease
Radial internal clearance CN (Group N) Normal internal clearance
