QJ306-XL-MPA-C3-FAG Four Point Contact Ball Bearing
FAG

QJ306-XL-MPA-C3-FAG Four Point Contact Ball Bearing

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£56.76 €65.67 $76.43 ex VAT

Descrizione

QJ306-XL-MPA-C3

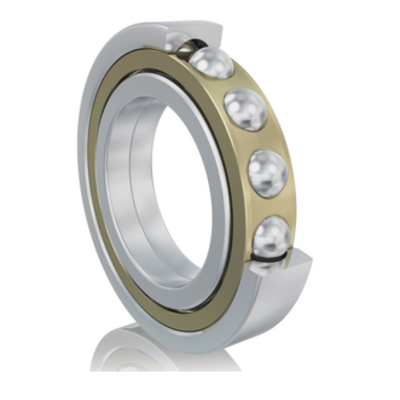

Four point contact bearing QJ3..-XL-MPA, X-life, solid brass cage

Main Dimensions & Performance Data
d : 30 mm Bore diameter
D : 72 mm Outside diameter
B : 19 mm Width
Cr : 57,000 N Basic dynamic load rating, radial
C0r : 38,500 N Basic static load rating, radial
Cur : 2,700 N Fatigue load limit, radial
nG : 19,600 1/min Limiting speed
nϑr : 7,800 1/min Reference speed

Dimensioni

Foro di dimensione: 30

Dimensione OD: 72

Larghezza dimensione: 19

Weight: 414g
