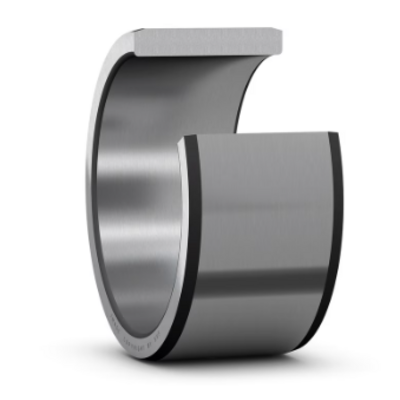

1R130X150X50-NTN Inner Ring
NTN

1R130X150X50-NTN Inner Ring

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£75.03 €86.60 $99.26 ex VAT

Descrizione

Inner Ring

PRODUCT DEFINITION
Brand NTN
d - Internal diameter 130 mm
B - Bearing/Inner ring width 50 mm
F - Under roller diameter 150 mm
rs - Min fillet radius 1,5 mm
Lubrication hole on inner ring No
t - IR chamfer length 3 mm
Precision class P0
Mass 1,69 kg
ABUTMENT
da min - Min shoulder diameter IR 138 mm
ras max - Max shaft & housing fillet radius 1,5 mm

Dimensioni

Foro di dimensione: 130

Dimensione OD: 150

Larghezza dimensione: 50

Weight: 1762g
