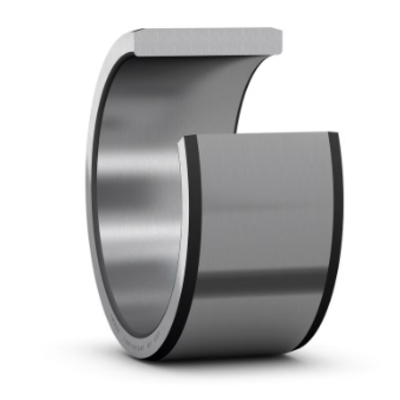

1R15X19X16-NTN Inner Ring
NTN

1R15X19X16-NTN Inner Ring

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£3.98 €4.60 $5.27 ex VAT

Descrizione

Inner Ring

PRODUCT DEFINITION
Brand NTN
d - Internal diameter 15 mm
B - Bearing/Inner ring width 16 mm
F - Under roller diameter 19 mm
rs - Min fillet radius 0,3 mm
Lubrication hole on inner ring No
t - IR chamfer length 1,5 mm
Precision class P0
Mass 0,013 kg
ABUTMENT
da min - Min shoulder diameter IR 17 mm
ras max - Max shaft & housing fillet radius 0,3 mm

Dimensioni

Foro di dimensione: 15

Dimensione OD: 19

Larghezza dimensione: 16

Weight: 13g
