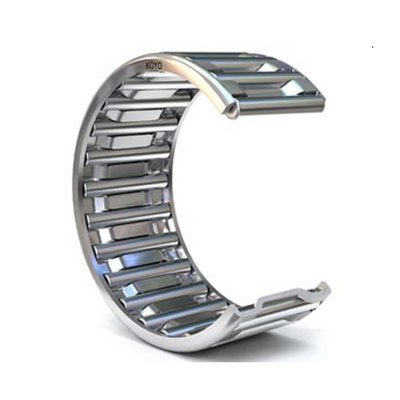

K50-58-20-INA Caged Needle Roller Bearing
INA

K50-58-20-INA Caged Needle Roller Bearing

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£15.39 €17.82 $20.70 ex VAT

Descrizione

K50X58X20-B/0-7
Needle roller cage assembly K, single row

Main Dimensions & Performance Data
Fw : 50 mm Inner diameter of needle roller complement
Ew : 58 mm Outside diameter of needle roller complement
Bc :  20 mm Width
Cr : 35,500 N Basic dynamic load rating, radial
C0r : 62,000 N Basic static load rating, radial
Cur : 8,900 N Fatigue load limit, radial
nG : 9,100 1/min Limiting speed
nϑr : 5,400 1/min Reference speed

Dimensioni

Foro di dimensione: 50

Dimensione OD: 58

Larghezza dimensione: 20

Weight: 75g
