GRAE35-XL-NPP-B-INA Ball Bearing Insert
INA

GRAE35-XL-NPP-B-INA Ball Bearing Insert

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£25.31 €29.31 $34.04 ex VAT

Descrizione

GRAE35-XL-NPP-B

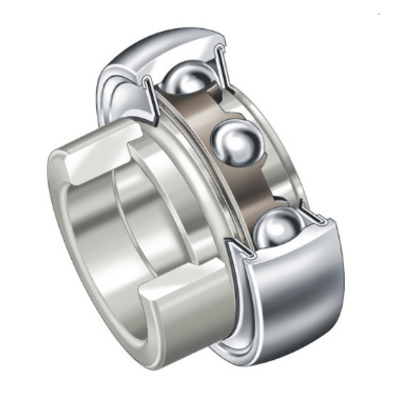

Radial insert ball bearing - flat back with locking collar

Main Dimensions & Performance Data
d = 35 mm Bore diameter
DSP = 72 mm Outside diameter
B =25.4 mm Width
B1 = 39 mm Locking collar total width
Cr = 25,500 N Basic dynamic load rating, radial
C0r = 15,300 N Basic static load rating, radial
Cur = 650 N Fatigue load limit, radial

Sealing NPP Lip seal on both sides
Shape of outer surface B B

Dimensioni

Foro di dimensione: 35

Dimensione OD: 72

Larghezza dimensione: 39

Weight: 470g
