GRAE50-XL-NPP-B-INA Bearing Insert
INA

GRAE50-XL-NPP-B-INA Bearing Insert

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£39.40 €45.62 $52.98 ex VAT

Descrizione

GRAE50-XL-NPP-B

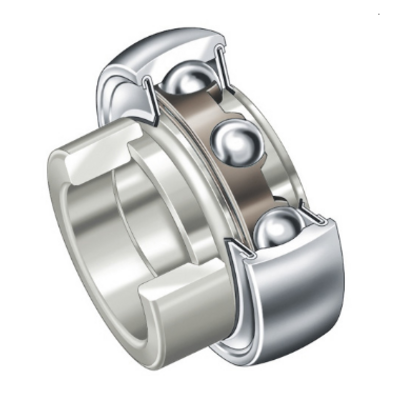

Radial insert ball bearing

Main Dimensions & Performance Data
d : 50 mm Bore diameter
DSP : 90 mm Outside diameter
B :  30.2 mmWidth
B1 : 43.8 mm Locking collar total width
Cr : 37,500 N Basic dynamic load rating, radial
C0r :  23,200 NBasic static load rating, radial
Cur : 1,210 N Fatigue load limit, radial
≈m : 0.729 kg Weight

Dimensioni

Foro di dimensione: 50

Dimensione OD: 90

Larghezza dimensione: 43.8

Weight: 729g
