RAE40-NPP-FA106-INA Bearing Insert
INA

RAE40-NPP-FA106-INA Bearing Insert

Item added to bag. Click here to view bag.

Please select a valid quantity from below to proceed.

£35.23 €40.80 $47.22 ex VAT

Descrizione

RAE40-XL-NPP-FA106

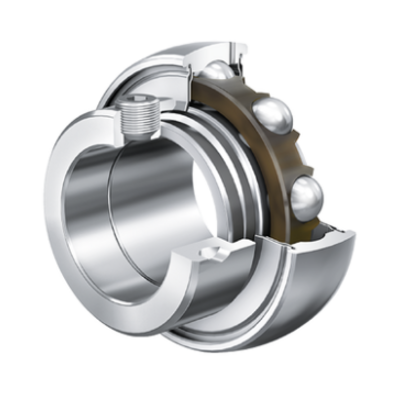

Radial insert ball bearing RAE..-XL-NPP

Your current product variant
Sealing NPP Lip seal on both sides
Manufacturing instruction FA106 Bearing subjected to special noise testing

Main Dimensions & Performance Data
d : 40 mm Bore diameter
D : 80 mm Outside diameter
B : 30.2 mm Width
B1 : 43.8 mm Locking collar total width
Cr : 32,500 N Basic dynamic load rating, radial
C0r : 19,800 N Basic static load rating, radial
Cur : 1,030 N Fatigue load limit, radial
≈m : 0.606 kg Weight

Dimensioni

Foro di dimensione: 40

Dimensione OD: 80

Larghezza dimensione: 43.8

Weight: 606g
