SY35FM-SKF Bearing Unit

SY 35 FM

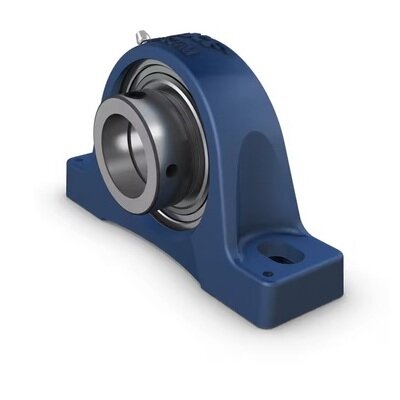

Pillow block ball bearing unit with narrow inner ring and eccentric locking collar, cast iron, ISO standards
Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is intended for use in applications where the direction of rotation is constant. It has a narrow inner ring and is locked onto the shaft by an eccentric locking collar, making it easy to mount.
Strong
Ready to mount
Lubricated and sealed bearing
Designed for rotation in one direction
Accommodate static initial misalignment

Dimensions
Attachment bolt diameter : 12 mm
Shaft diameter : 35 mm
Centre height (pillow block) : 47.6 mm
Housing overall width : 45 mm
Centre distance between bolt holes : 126 mm
Bearing width, total : 38.9 mm

Performance
Basic dynamic load rating : 25.5 kN
Basic static load rating : 15.3 kN
Limiting speed : 5 300 r/min
