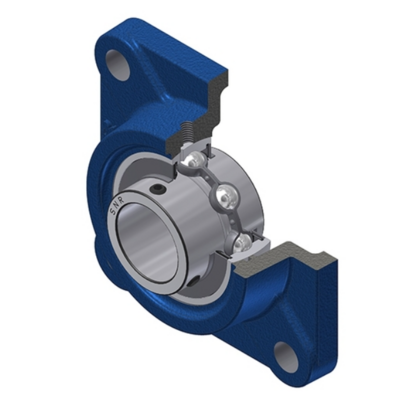

UCF210-SNR 50mm 4 bolt square Bearing Unit

UCF210 - SNR
Grey cast housing, radial insert ball bearing with socket set screws,seal with slinger

PRODUCT DEFINITION
A - Housing height 40 mm
A1 - Housing foot height / flange height 16 mm
A2 - Total height from mounting surface 54,6 mm
B - Width of Inner Ring 51,6 mm
d - Shaft diameter 50 mm
e - Distance mounting surface to bearing center 22 mm
G - Grease fitting M6x1
J - Mounting holes distance 111 mm
L - Housing width / diameter 143 mm
N - Mounting hole dimension 16 mm
S - Distance front side/bearing centre 19 mm

PRODUCT PERFORMANCE
C - Dynamic load rating 35,1 kN
C0 - Static load rating 23,2 kN
Operating temperature min. -20 °C
Operating temperature max. 100 °C

OTHER FEATURES
Mass 2,5 kg
Recommended tightening torque for set screw 22 N-m
